Intro to QCut CutOptions

from qiskit import QuantumCircuit
from qiskit.circuit.library import CXGate, RZZGate
from qiskit.quantum_info import SparsePauliOp
from qiskit_aer import AerSimulator

import QCut as ck
from QCut import CutOptions, cut, cutGate

QCut allows configuring some options related to the circuit cutting, finding, and execution processes. All of these options are configured with a single CutOptions object that is passed to .run() or .get_locations_and_subcircuits(). CutOptions allows defining the following options:

• consolidate: whether to merge consecutive cut gates into a single cut gate saving on experiment circuits and overhead

  • auto (default), always or never. auto compares cost with joint_rotation_cuts applied before consolidation since this sometimes results in cheaper decompositions.

• joint_rotation_cuts: whether to jointly cut parallel 2 qubit rotation gates using a join decomposition. The joint decomposition costs stricly less, both in circuits and overhead, than decomposing separately

  • True (default) or False

• wire_cut_communication: whether to use a wire cutting decomposition utilising one-way classical communication (LOCC) between subcircuits. Leads to a decomposition with less circuit. Also achieves smaller overheads on parallel blocks of more than 2 wire cuts.

  • auto (default), always or never. auto applies LOCC wire cuts on blocs of atleast 2 parallel wire cuts and otherwise defaults to non-communicating decomposition.

• expansion: whether to exactly enumerate through all of the generated experiment circuits from the decomposition or to sample it.

  • auto (default), exact or sample. auto chooses between exact and sample based on max_exact_groups

• max_exact_groups: thr maximum number of experiment groups to exactly enumerate through

  • int default 1000

• num_samples: number of samlples to take from the decomposition when expansion is set to sample

  • defaults to max_exact_groups

• finder_candidates: how many candidate partitions to compare in automatic cut finding

  • int default 5

• seed: seed passed to the automatic cut finder and used for sampling when expansion is set to sample

Below you can also see the default values. They can also be accessed via ck.DEFAULT_OPTIONS

options = CutOptions(
    consolidate="auto",
    joint_rotation_cuts=True,
    wire_cut_communication="auto",
    expansion="auto",
    max_exact_groups=1000,
    num_samples=None,
    finder_candidates=5,
    seed=None,
)

Now lets see some of them in action

qc = QuantumCircuit(2)
qc.append(**cutGate(CXGate(), 0, 1))
qc.append(**cutGate(RZZGate(0.5), 0, 1))

qc.draw("mpl")

for mode in ["auto", "never", "always"]:
    options = CutOptions(
        consolidate=mode,
    )

    cut_circuit = ck.get_locations_and_subcircuits(qc, options=options)

    observables = SparsePauliOp(["ZZ"])

    cut_experiment = ck.get_experiment_circuits(cut_circuit, observables)

    print(f"Generated {cut_experiment.num_circuits} circuits. In mode {mode}.")

Generated 12 circuits. In mode auto.
Generated 72 circuits. In mode never.
Generated 12 circuits. In mode always.

def parallel_rotations(n_gates, cut_it=True):
    """n_gates parallel rzz across a two-way split, both sides connected."""
    width = 2 * n_gates
    circuit = QuantumCircuit(width)
    for qubit in range(width):
        circuit.ry(0.3 + 0.1 * qubit, qubit)
    for index in range(n_gates - 1):
        circuit.rzz(0.5, index, index + 1)
        circuit.rzz(0.5, n_gates + index, n_gates + index + 1)
    for index in range(n_gates):
        theta = 0.9 + 0.2 * index
        if cut_it:
            circuit.append(**cutGate(RZZGate(theta), index, n_gates + index))
        else:
            circuit.rzz(theta, index, n_gates + index)
    return circuit

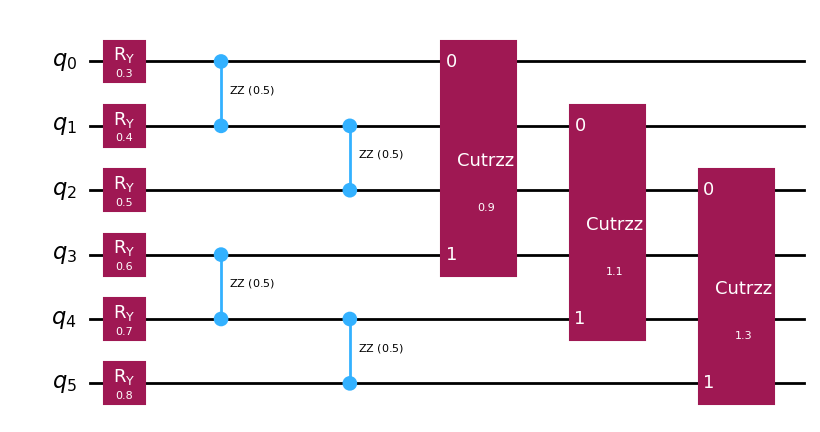

parallel_circuit = parallel_rotations(3, cut_it=True)

parallel_circuit.draw("mpl")

for mode in [True, False]:
    options = CutOptions(
        joint_rotation_cuts=mode,
    )

    cut_circuit = ck.get_locations_and_subcircuits(parallel_circuit, options=options)

    observables = SparsePauliOp(["ZZZZZZ"])

    cut_experiment = ck.get_experiment_circuits(cut_circuit, observables)

    print(f"Generated {cut_experiment.num_circuits} circuits. In mode {mode}.")

Generated 264 circuits. In mode True.
Generated 432 circuits. In mode False.

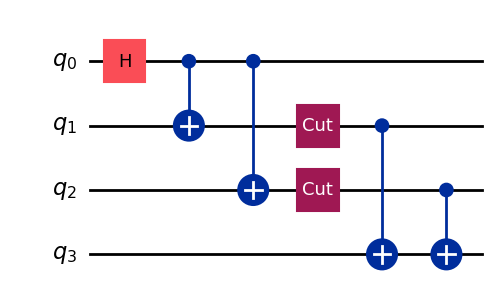

wire_cut = QuantumCircuit(4)
wire_cut.h(0)
wire_cut.cx(0, 1)
wire_cut.cx(0, 2)
wire_cut.append(cut(), [1])
wire_cut.append(cut(), [2])
wire_cut.cx(1, 3)
wire_cut.cx(2, 3)

wire_cut.draw("mpl")

for mode in ["auto", "never", "always"]:
    options = CutOptions(
        wire_cut_communication=mode,
    )

    cut_circuit = ck.get_locations_and_subcircuits(wire_cut, options=options)

    observables = SparsePauliOp(["ZZZZ"])

    cut_experiment = ck.get_experiment_circuits(cut_circuit, observables)

    print(f"Generated {cut_experiment.num_circuits} circuits. In mode {mode}.")

Generated 56 circuits. In mode auto.
Generated 128 circuits. In mode never.
Generated 56 circuits. In mode always.

wire_cut_single = QuantumCircuit(3)
wire_cut_single.h(0)
wire_cut_single.cx(0, 1)
wire_cut_single.append(cut(), [1])
wire_cut_single.cx(1, 2)

wire_cut_single.draw("mpl")

for mode in ["auto", "never", "always"]:
    options = CutOptions(
        wire_cut_communication=mode,
    )

    cut_circuit = ck.get_locations_and_subcircuits(wire_cut_single, options=options)

    observables = SparsePauliOp(["ZZZ"])

    cut_experiment = ck.get_experiment_circuits(cut_circuit, observables)

    print(f"Generated {cut_experiment.num_circuits} circuits. In mode {mode}.")

Generated 16 circuits. In mode auto.
Generated 16 circuits. In mode never.
Generated 12 circuits. In mode always.

wire_cut_sequence = QuantumCircuit(3)
wire_cut_sequence.h(0)
wire_cut_sequence.cx(0, 1)
wire_cut_sequence.append(cut(), [1])
wire_cut_sequence.cx(1, 2)
wire_cut_sequence.append(cut(), [1])
wire_cut_sequence.cx(0, 1)

wire_cut_sequence.draw("mpl")

for mode in ["auto", "never", "always"]:
    options = CutOptions(
        wire_cut_communication=mode,
    )

    cut_circuit = ck.get_locations_and_subcircuits(wire_cut_sequence, options=options)

    observables = SparsePauliOp(["ZZZ"])

    cut_experiment = ck.get_experiment_circuits(cut_circuit, observables)

    print(f"Generated {cut_experiment.num_circuits} circuits. In mode {mode}.")

Generated 128 circuits. In mode auto.
Generated 128 circuits. In mode never.
Generated 96 circuits. In mode always.

Notice that here the non-parallel wire cuts actually lead to more circuits in auto mode. This is die to how the implementation afects the actual achieved overhead. The ideal overhead of the LOCC cuts is always better than the non-communicating decomposition. However due to how it needs to be implemented to be efficient on actual hardware (no jobs with single circuit and single shot) the achieved overhead suffers somewhat and is slightly worse than the non-communicative one on non parallel wire cuts. This is way auto sometimes chooses to generate more circuits. In the end this is an situation dependant tradeoff where you are choosing between more samples/shots or more circuits.

ghz = QuantumCircuit(3)
ghz.x(0)
ghz.append(**cutGate(CXGate(), 0, 1))
ghz.append(**cutGate(CXGate(), 1, 2))

ghz.draw("mpl")

parallel_circuit = parallel_rotations(3, cut_it=True)

for samples in [100, 3000, "exact"]:
    if samples == "exact":
        options = CutOptions(
            expansion="exact",
        )
    else:
        options = CutOptions(
            num_samples=samples,
            expansion="sample",
        )

    cut_circuit = ck.get_locations_and_subcircuits(parallel_circuit, options=options)

    observables = SparsePauliOp(["ZZZZZZ"])

    cut_experiment = ck.get_experiment_circuits(cut_circuit, observables)

    print(f"Generated {cut_experiment.num_circuits} circuits.")

    res = ck.run_experiments(cut_experiment, backend=AerSimulator())

    expectation_values = ck.estimate_expectation_values(res)

    if samples == "exact":
        print(f"ZZ = {expectation_values[0]} for exact expansion.")
    else:
        print(f"ZZ = {expectation_values[0]} for {samples} samples.")

Generated 120 circuits.
ZZ = 0.21840353784399721 for 100 samples.
Generated 264 circuits.
ZZ = 0.3867275818121978 for 3000 samples.
Generated 264 circuits.
ZZ = 0.3145307898274838 for exact expansion.
